Standard Mini USB Cable
USB-A male to Mini-B 5-pin cable for charging and USB 2.0 data synchronization with cameras, GPS devices, storage products and legacy equipment.
Explore Mini USB cables, adapters and extension solutions for charging, USB 2.0 data transfer, legacy devices and industrial equipment. Compare connector design, charging current, data performance, shielding and cable construction to select the right Mini USB solution.
The Mini USB range includes standard charging and data cables, magnetic-ring anti-interference designs, right-angle cables, extension cables, legacy OTG adapters and connector-conversion solutions.
USB-A male to Mini-B 5-pin cable for charging and USB 2.0 data synchronization with cameras, GPS devices, storage products and legacy equipment.
Mini USB cable with an integrated ferrite magnetic ring for applications where additional suppression of high-frequency interference is useful.

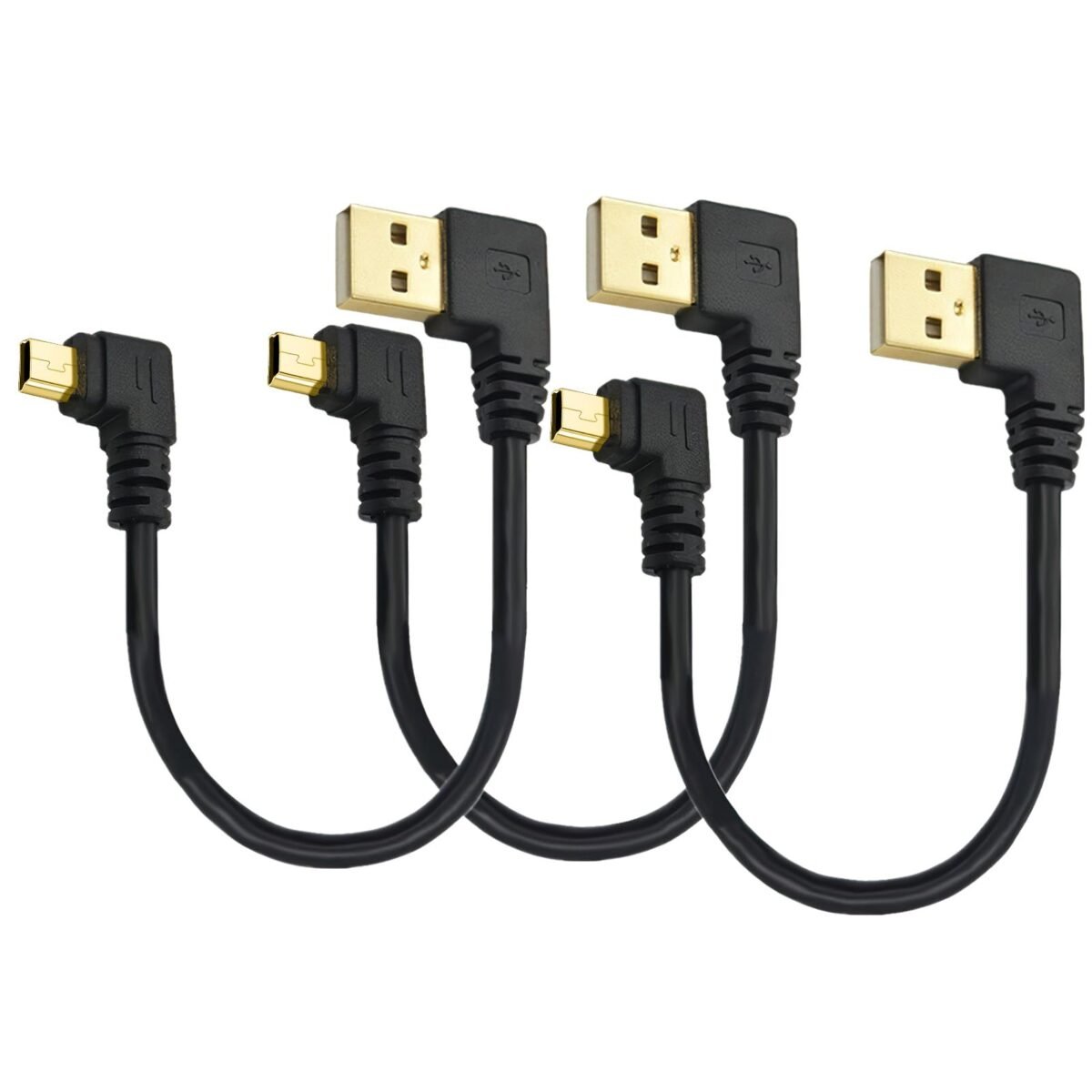

90-degree Mini USB cables for dash cams, GPS devices, printers and installations where a straight connector requires too much clearance.
Mini USB 5-pin male-to-female extension cables for extending data or power connections without changing the device interface.
USB-A female to Mini USB male host-adapter configuration for compatible legacy cameras, MP3 players and other supported devices.
Mini USB to USB-C converter cables and multi-device Mini USB / Micro USB adapter assemblies for legacy connector compatibility.
Mini USB cables may look similar, but charging capability, USB 2.0 data wiring and interference protection should be evaluated separately.
Charging performance depends on current requirement, conductor gauge, cable resistance and cable length.
Data-capable Mini USB cables support synchronization and communication with compatible legacy equipment.
Industrial Mini USB designs can add shielding and ferrite components where electrical interference is a concern.
Select Mini USB charging capability according to the connected device, power source, cable length and conductor construction.
Suitable for many low-power legacy devices and basic Mini USB charging applications.
A practical current option for compatible cameras, GPS units and portable equipment.
Available for products requiring a higher-current Mini USB cable configuration.
The existing cable specification supports 24AWG power conductors combined with 28AWG data conductors.
A longer cable increases resistance and voltage drop, so conductor size and length should be selected together.
A higher-current Mini USB cable does not automatically provide better USB data performance.
Standard Mini USB data cables support USB 2.0 communication for legacy equipment such as cameras, GPS products, printers and controllers.
For industrial environments, shielding and cable construction become especially important when reliable communication is required.
Standard Mini USB data capability for compatible legacy devices and industrial equipment.
Aluminum foil plus braided shielding is available for applications requiring improved interference protection.
Selected Mini USB cables include an integrated magnetic ring for additional high-frequency noise suppression.
Industrial shielded configurations are available for equipment operating across a wider temperature environment.
Use these parameters when comparing a standard, right-angle, extension or industrial Mini USB cable.
Standard 5-pin Mini USB cable configuration.
Compatible with USB 1.1 equipment where applicable.
USB 2.0 Hi-Speed signaling capability.
Select according to device, power source and cable design.
Power and data conductor configurations for standard Mini USB cables.
Industrial shielding option for improved EMI/RFI protection.

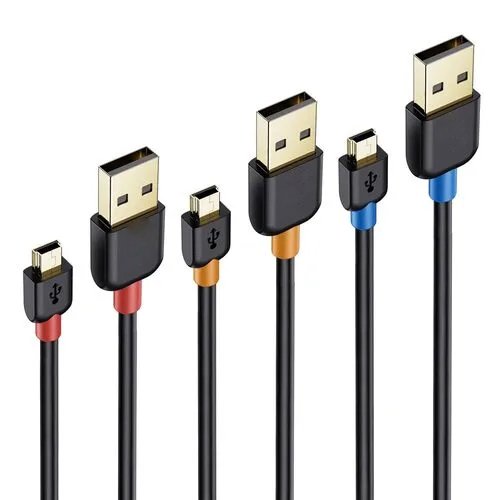

Standard and custom lengths for equipment and replacement applications.
Including oil-resistant PU options for industrial use.
Compare power, data performance and mechanical design independently to identify the correct Mini USB solution.
| PRODUCT | POWER | DATA & SIGNAL | CONNECTOR / DESIGN | APPLICATION | |||
|---|---|---|---|---|---|---|---|
| Product Type | Charging | Power Factor | USB Data | EMI / Function | Connector | Mechanical Design | Typical Use |
| Standard Mini USB Cable | 1A–2A | 24AWG / length | Up to 480Mbps | Standard shielding | USB-A → Mini-B 5P | Straight | Camera / GPS / Legacy Device |
| Magnetic Ring Mini USB Cable | By configuration | Gauge / length | USB 2.0 | Ferrite interference suppression | USB-A → Mini-B | Cable + Magnetic Ring | Industrial / Equipment |
| Right-Angle Mini USB Cable | By configuration | Gauge / length | Up to 480Mbps option | Shielded options | Mini-B | 90° Up / Down / Left / Right | Dash Cam / GPS / Printer |
| Mini USB Extension Cable | By cable design | Length dependent | USB 2.0 option | Extension | Mini-B Male → Female | Straight / 90° | Equipment Extension |
| Mini USB OTG Adapter | Application dependent | Host/device design | USB 2.0 | Legacy host function | USB-A Female → Mini USB Male | Adapter Cable | Legacy Peripheral Connection |
| Mini USB to USB-C Adapter | By configuration | Connected equipment | By cable design | Connector conversion | Mini USB ↔ USB-C | Converter Cable | Modern-to-Legacy Connection |
| Mini + Micro Combo Cable | Application dependent | Wiring dependent | By configuration | Multi-device connection | Mini USB + Micro USB | Combo Adapter | Multi-Device Legacy Equipment |
Charging current, USB 2.0 data capability, shielding and host/adapter function depend on the selected product configuration. Confirm the target device interface and electrical requirements before selection.

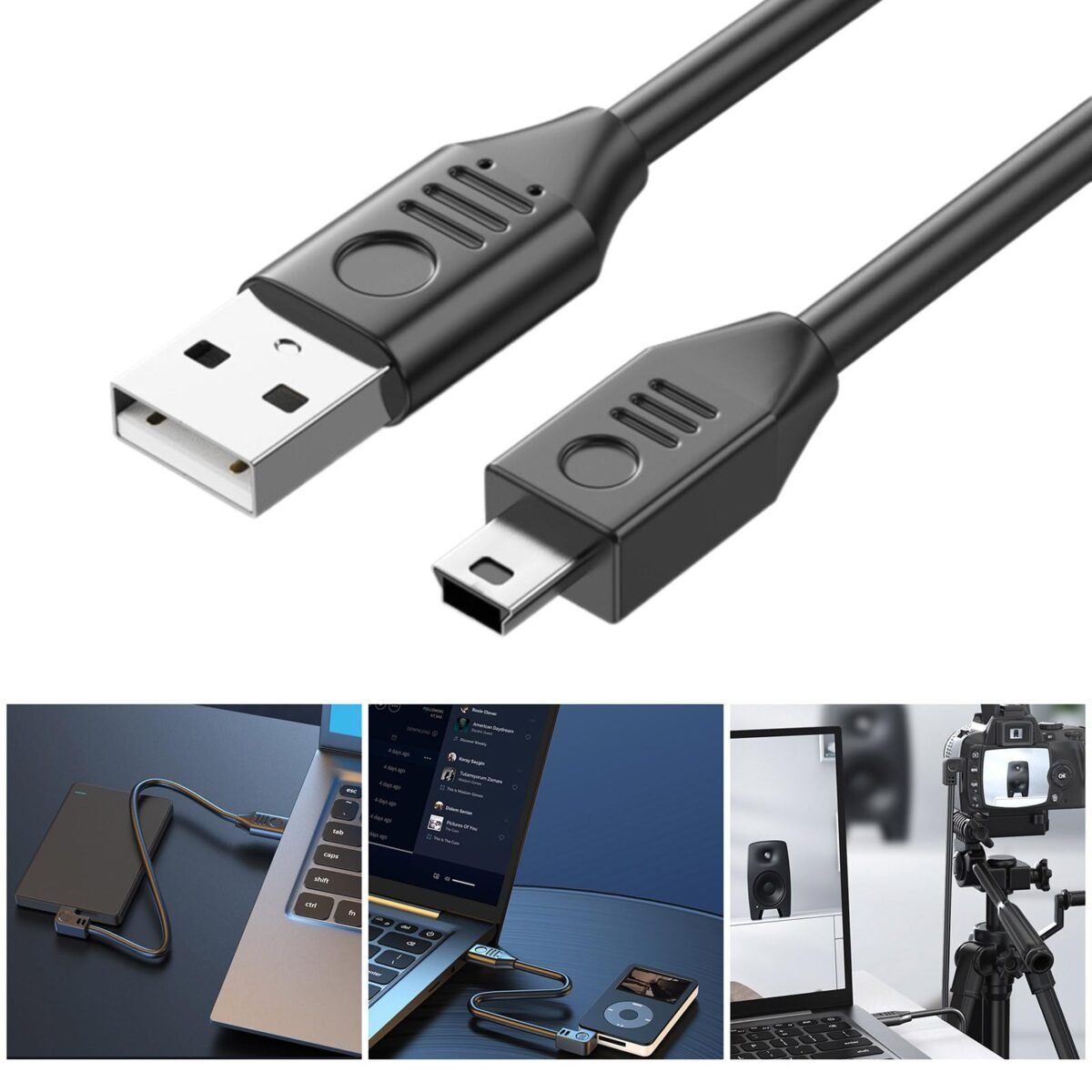

Mini USB continues to be used in cameras, navigation systems, industrial equipment and other installed products where the Mini-B interface remains part of the existing hardware design.
USB Mini cables for charging, data synchronization and connection with compatible older digital cameras.

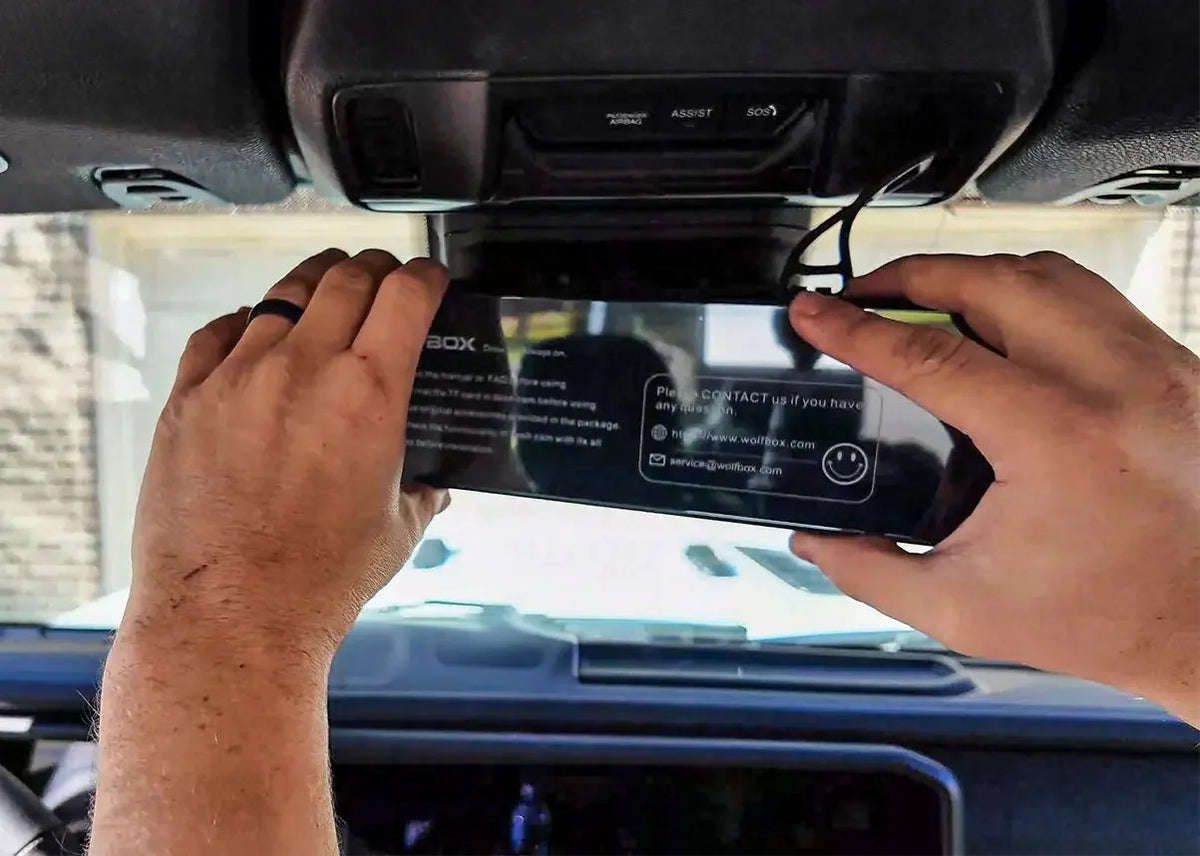

Focus: USB 2.0 data + connector fitStraight and right-angle Mini USB connections for navigation devices and vehicle-mounted cameras.
Focus: 90° orientation + durabilityData and power connections for compatible printers and older USB peripheral equipment.
Focus: stable USB 2.0 connectionUSB Mini connectivity for compatible older hard drives, card readers and storage products.
Focus: data integrity + shieldingMini USB data connections for compatible legacy MIDI controllers and musical equipment.

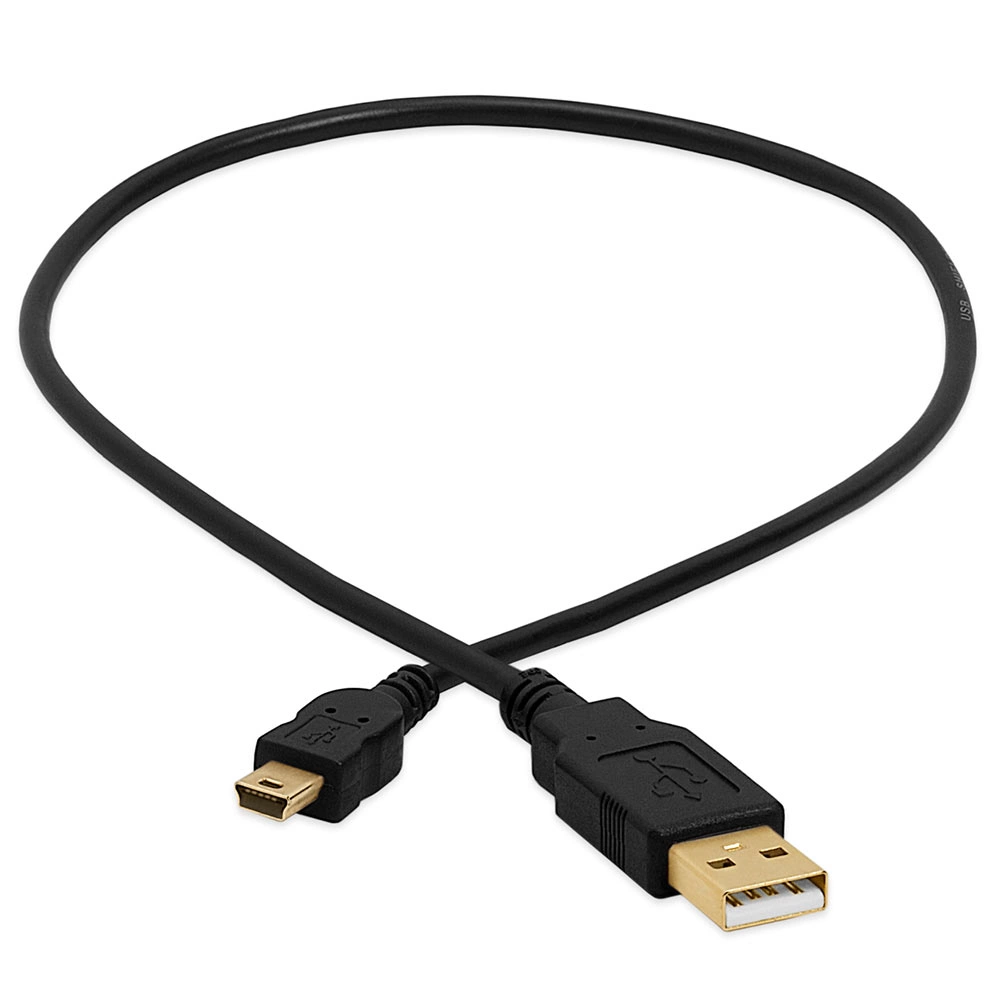

Focus: reliable data communicationShielded Mini USB cables for industrial controllers, factory equipment and installed legacy systems.
Focus: EMI shielding + PU jacketDefine these six parameters before selecting a Mini USB cable or adapter for your project.
Choose standard Mini-B, extension, OTG, USB-C adapter or multi-device configuration.
Confirm whether the device requires 1A, 1.5A or a 2A cable configuration.
Determine whether USB 2.0 data communication up to 480Mbps is required.
Select straight or 90° up, down, left or right according to installation space.
Choose cable length and conductor size according to charging and signal requirements.
Confirm whether the project requires industrial shielding, oil-resistant PU or ferrite suppression.
Choose jacket material, shielding and connector construction according to flexibility, durability and operating environment.
Practical construction for standard Mini USB charging and data cables.
Softer and more flexible jacket construction for portable equipment.
Braided construction for improved abrasion resistance and a more durable exterior.
Oil-resistant PU jacket and industrial shielding options for factory and outdoor equipment.
Practical answers about Mini USB connector compatibility, right-angle configurations, ferrite rings, industrial shielding and cable lengths.
Mini USB and Micro USB use different physical connectors. A Mini-B connector is larger than a standard Micro-B connector, and the two are not interchangeable.
Mini USB is commonly found on older cameras, GPS equipment, industrial devices and other legacy electronics.
Select the cable according to the actual connector installed on your equipment, not just the USB version or intended function.

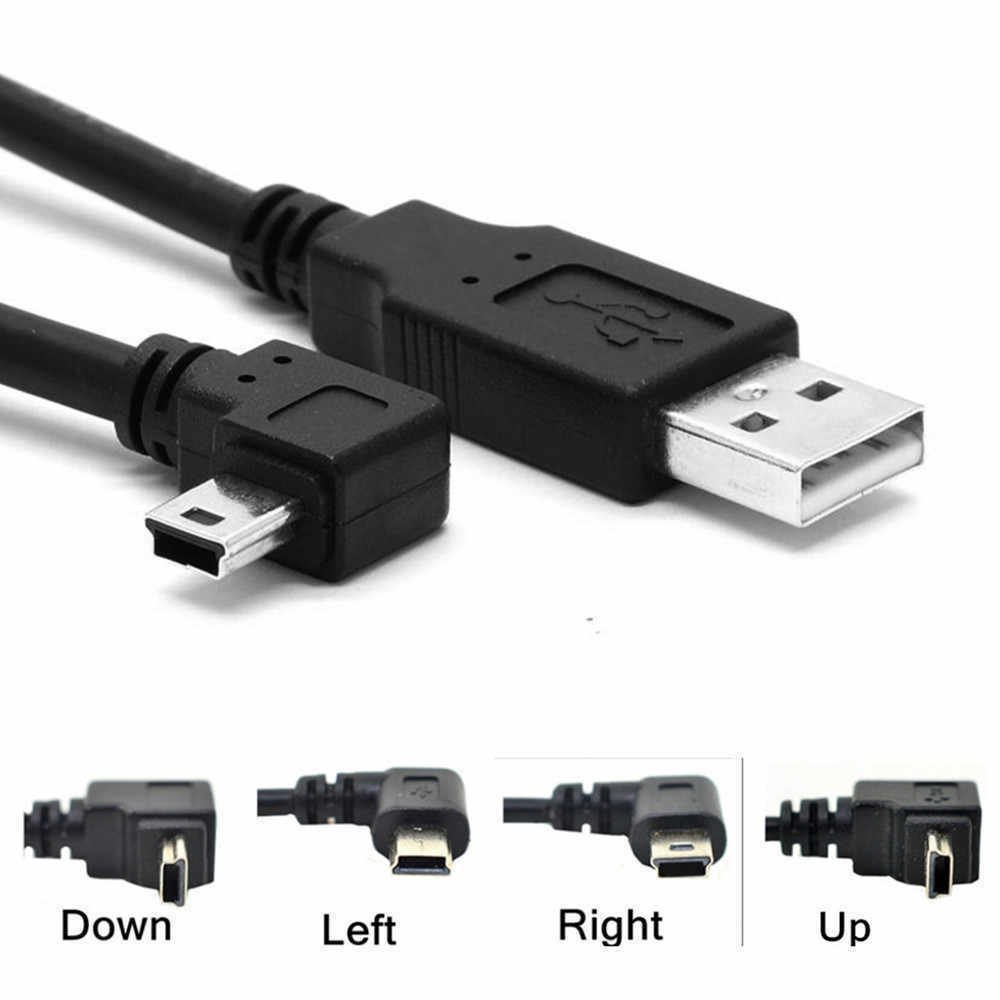

Yes. We offer right-angle Mini USB configurations for applications where a straight connector requires too much space.
Depending on the design, connector orientation may be up, down, left or right. The correct direction should be defined relative to the device connector and installation position.
Please provide a drawing or photograph of the installation if connector orientation is critical.
The magnetic ring is usually a ferrite component fitted around the cable to help suppress certain high-frequency electrical noise.
It may be useful for equipment operating in environments where electromagnetic interference is a concern.
Its effectiveness depends on the noise frequency, cable arrangement and ferrite characteristics. A ferrite ring alone does not guarantee electromagnetic compatibility.

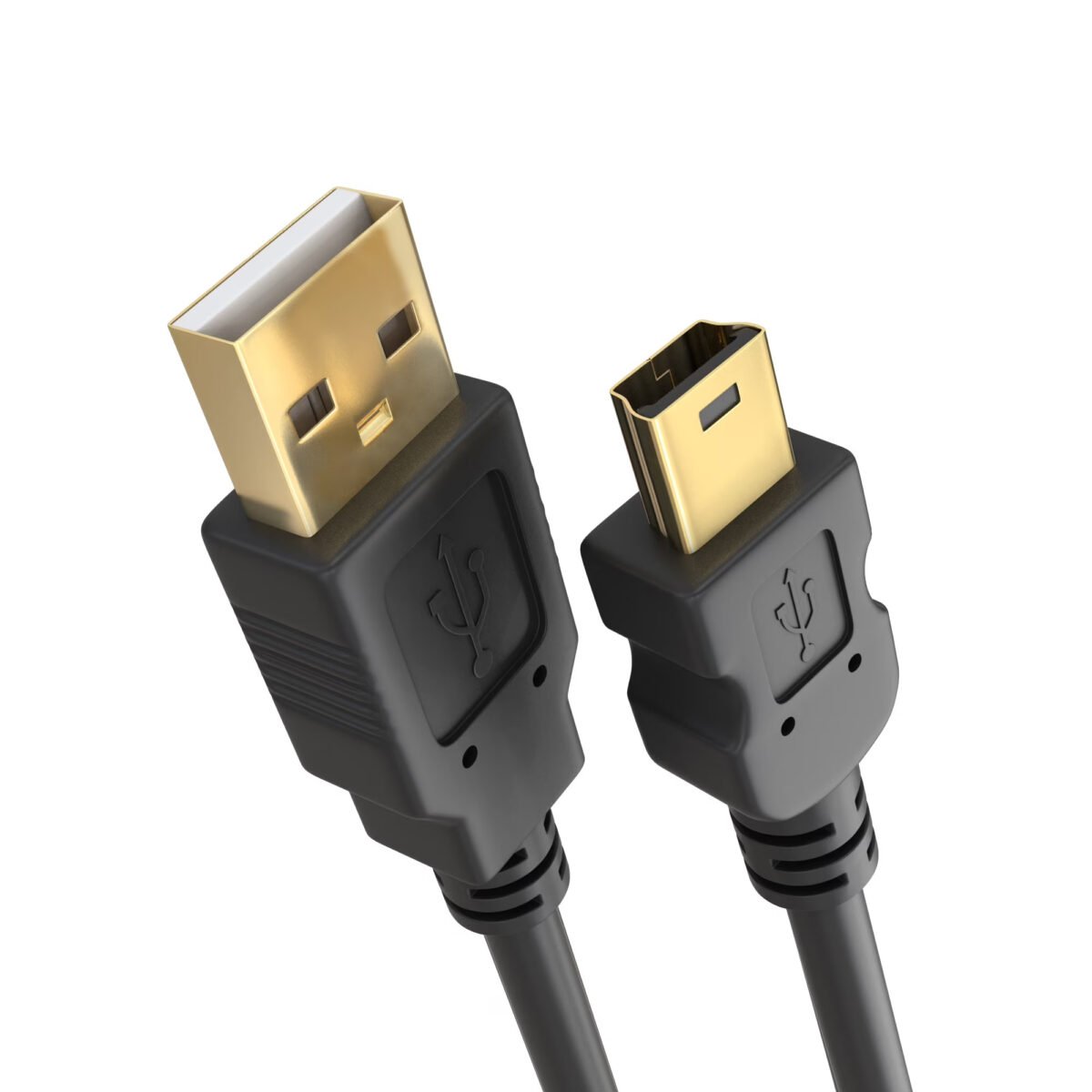

Selected industrial Mini USB configurations can use aluminum foil and braided shielding to help manage electromagnetic interference.
Oil-resistant PU jacket options are also represented in our industrial cable range.
Shielding and jacket requirements should be selected according to the electrical environment, installation method and expected mechanical exposure.
Not every Mini USB cable automatically includes industrial shielding.

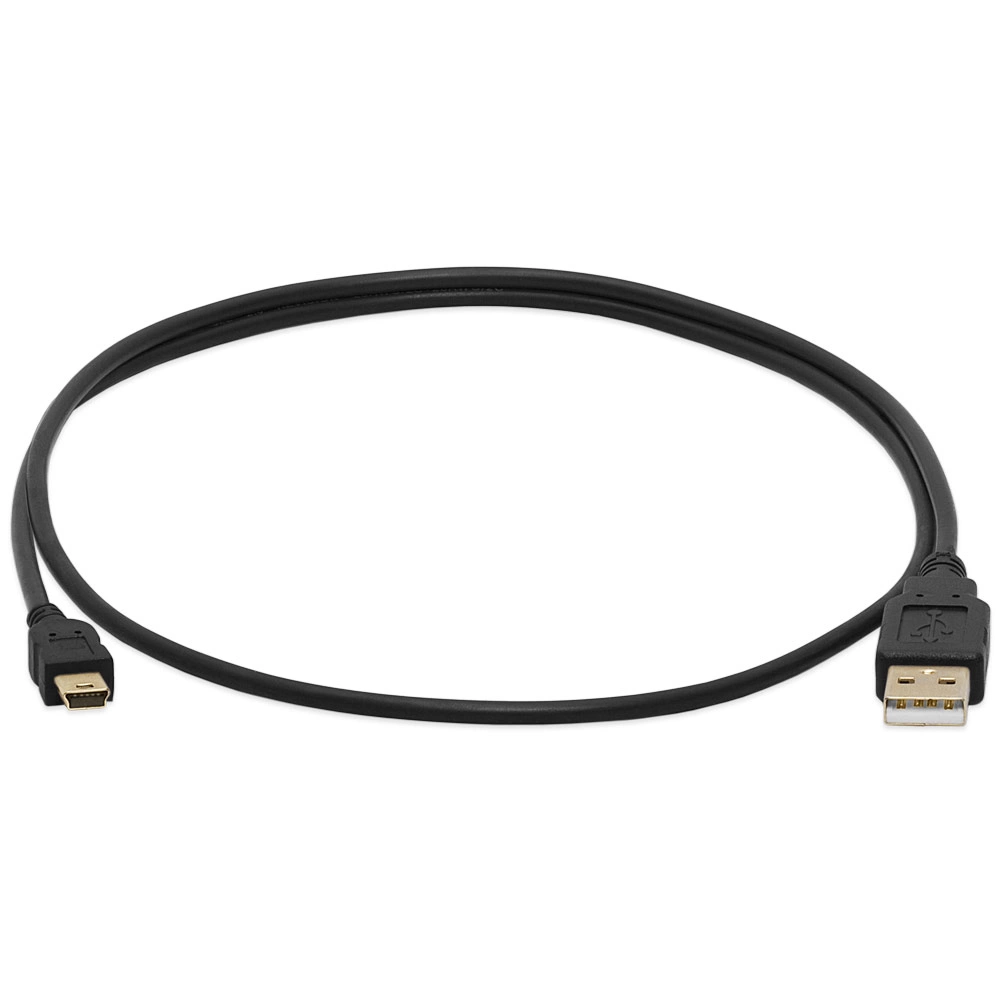

Lengths represented in our Mini USB range include 20cm, 50cm, 1m, 1.8m, 3m and 5m.
Custom lengths can be reviewed according to the cable construction and project requirements.
The suitability of longer cables depends on charging current, voltage drop, signal requirements and the connected equipment. Not every construction is suitable for every listed length.
Tell us your Mini USB connector configuration, charging current, USB 2.0 data requirement, connector direction, cable length, shielding and application. We can help identify a suitable Mini USB cable or adapter configuration.
