High Speed USB Cable Solutions

1. High Speed USB Cable Types

The high speed USB cable portfolio covers two primary cable categories, each supporting distinct data transfer rate tiers within the USB specification framework. Products are manufactured to consistent quality standards and are available for bulk wholesale supply.

1.1 USB 3.x Cable

USB 3.x cables represent the widely deployed high speed USB interface generation, offering substantially higher data transfer rates compared to USB 2.0. The USB 3.x specification encompasses several data rate tiers, providing options for a range of performance requirements and device compatibility needs.

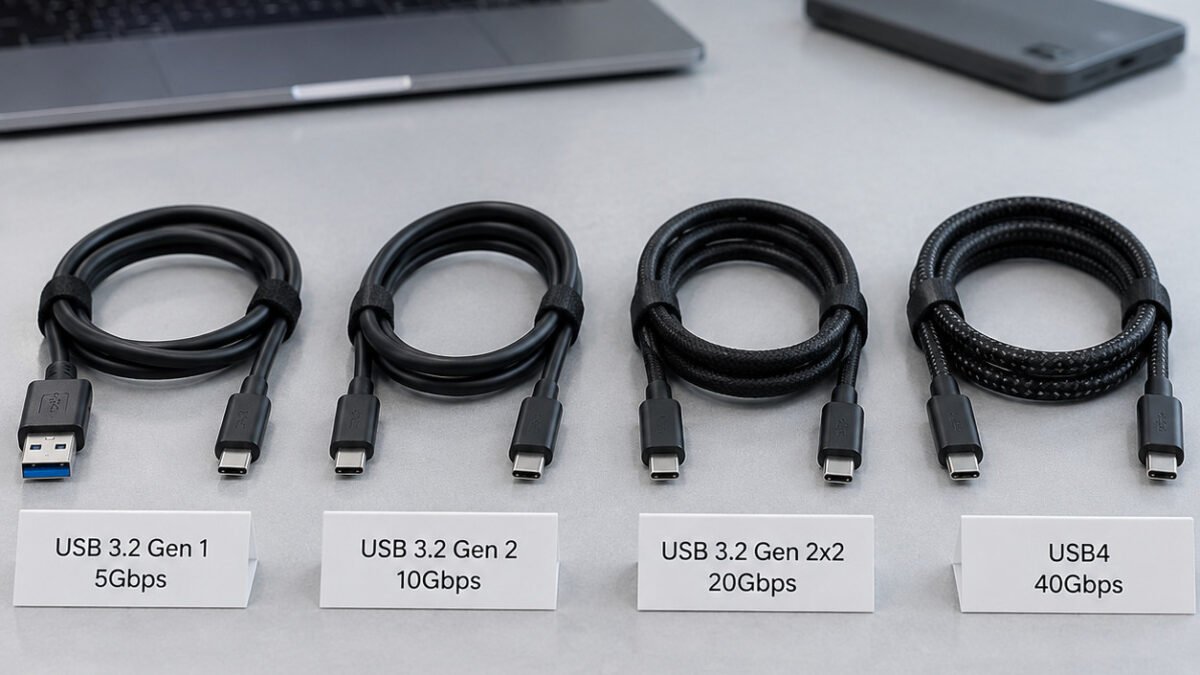

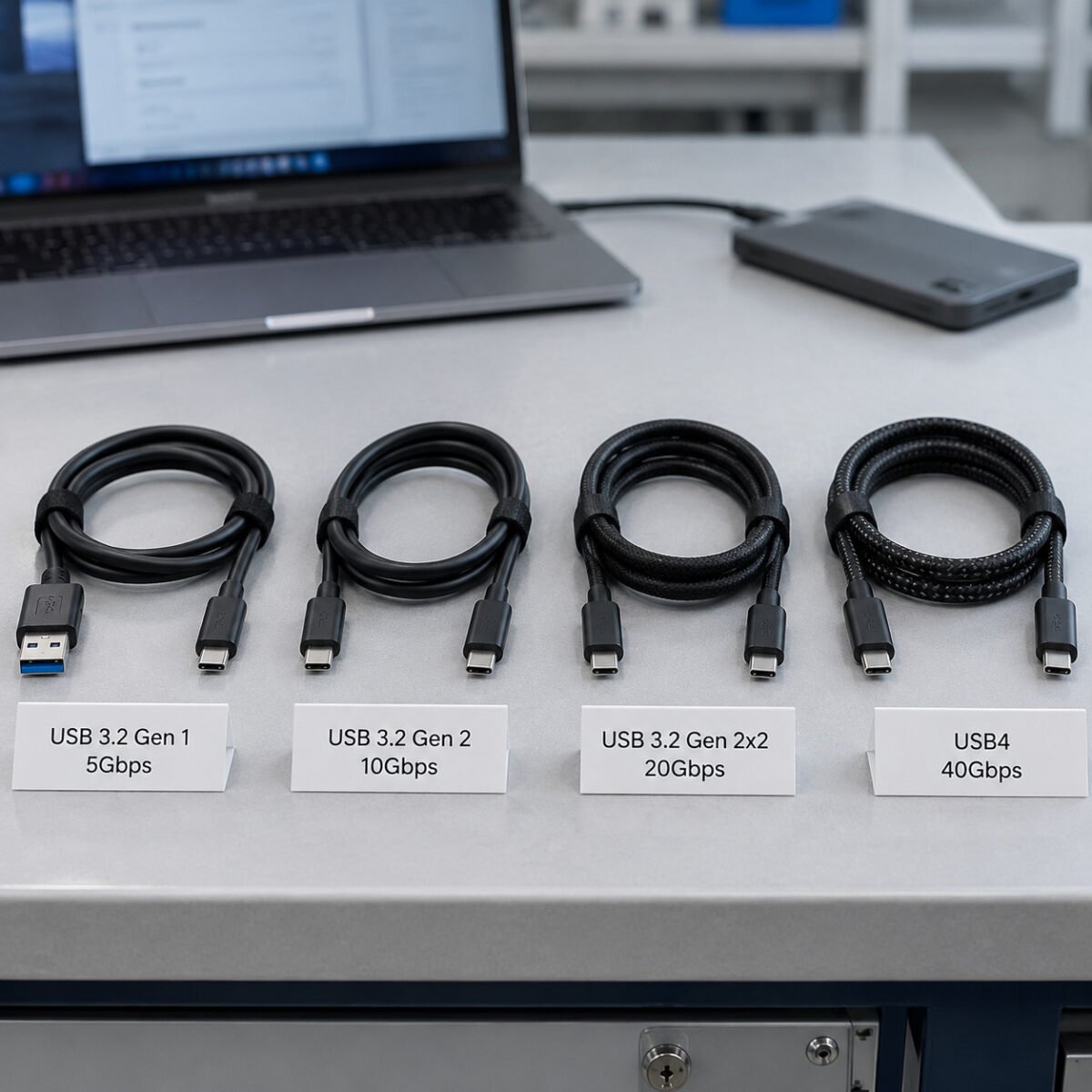

USB 3.2 Gen 1 supports data transfer rates up to 5Gbps, suitable for external storage drives, camera connectivity and general-purpose high speed peripherals. USB 3.2 Gen 2 supports data transfer rates up to 10Gbps, serving applications requiring higher bandwidth such as high-resolution video transfer and fast external storage arrays. USB 3.2 Gen 2x2 supports data transfer rates up to 20Gbps, addressing high-throughput data scenarios including professional video equipment and fast storage configurations.

Key Specifications:

• USB 3.2 Gen 1: 5Gbps data rate, backward compatible with USB 2.0
• USB 3.2 Gen 2: 10Gbps data rate, backward compatible with USB 3.2 Gen 1 and USB 2.0
• USB 3.2 Gen 2x2: 20Gbps data rate, available with USB-C connectors
• Connector Types: USB-A, USB-C and USB-B configurations available

USB 3.x cables are available across multiple connector combinations and cable lengths, built for reliable data transmission and large-volume supply chain requirements.

1.2 USB4 Cable

USB4 represents the current highest-tier USB data transfer specification, delivering significantly increased bandwidth through the USB Type-C connector. USB4 unifies the USB protocol architecture with Tunneling support for Thunderbolt, enabling a single cable to carry USB data, DisplayPort video signals and PCIe data simultaneously.

USB4 Version 1.0 supports data transfer rates up to 40Gbps, suitable for high-resolution display output, fast external storage and docking station connectivity. USB4 Version 2.0, published by USB-IF, supports data transfer rates up to 80Gbps, with selected implementations enabling asymmetric mode operation for directional high-bandwidth applications.

Key Specifications:

• USB4 Version 1.0: up to 40Gbps aggregate bandwidth
• USB4 Version 2.0: up to 80Gbps aggregate bandwidth
• Connector: USB Type-C only
• Protocol Tunneling: Supports USB, DisplayPort and PCIe protocol tunneling
• Power Delivery: Compatible with USB PD up to 240W (48V / 5A) under PD 3.1 EPR, depending on cable specification

USB4 cable solutions include selected models certified to USB-IF standards, with E-marker chip integration for high-power applications. Compatibility with Thunderbolt 3 and Thunderbolt 4 devices depends on the specific cable and device implementation.

2. High Speed USB Cable Applications

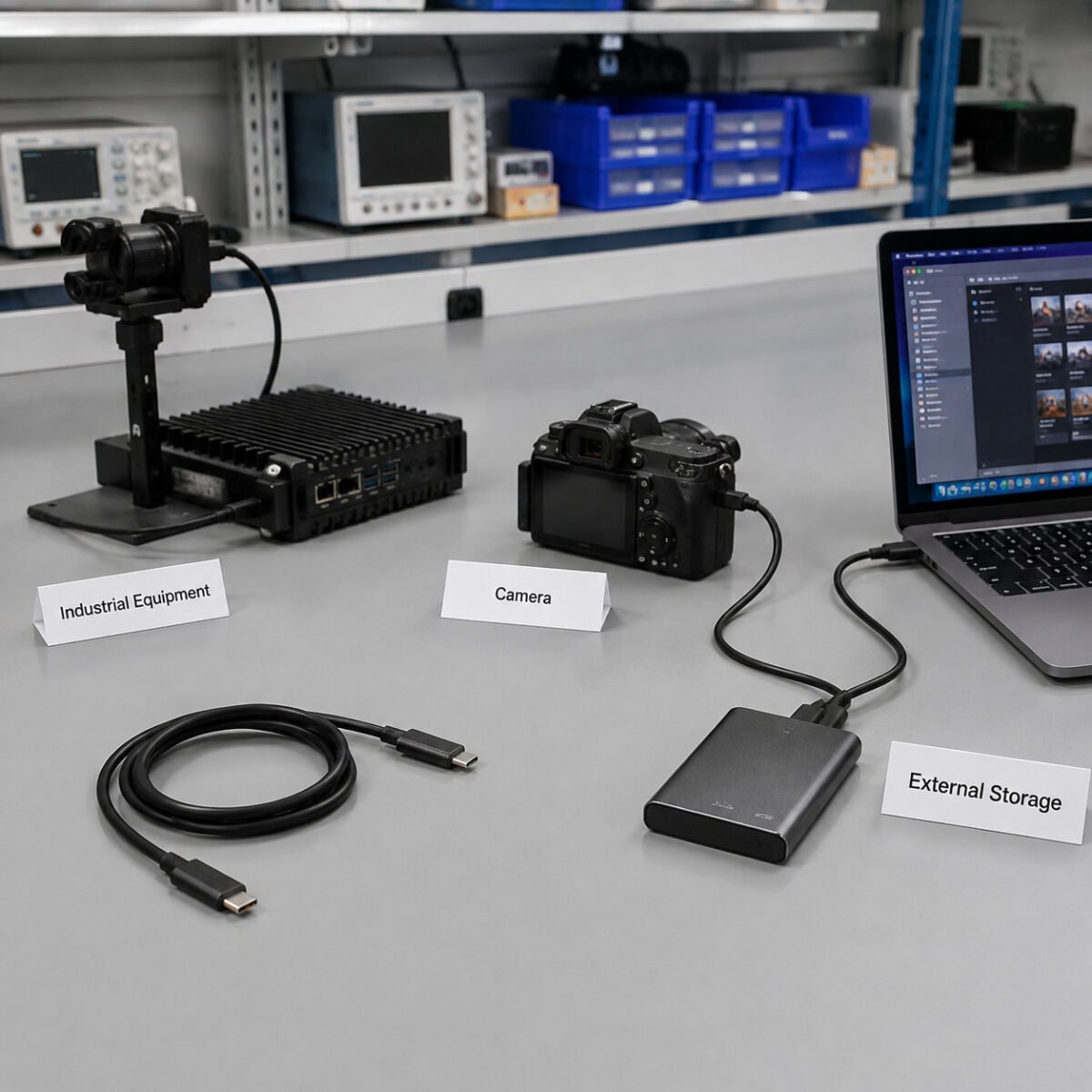

High speed USB cables serve as a primary connectivity interface for data-intensive applications across multiple market segments. The following categories outline the primary application areas and their typical use cases.

2.1 External Storage

External storage devices represent one of the primary applications for high speed USB cables. External solid-state drives (SSDs) and hard disk drives (HDDs) rely on high bandwidth USB connections to achieve rated read and write transfer speeds. USB 3.2 Gen 2 cables at 10Gbps are suitable for mainstream external SSDs, while USB4 cables at 40Gbps serve high-performance storage arrays used in video editing, data backup and content production workflows. Cable selection for storage applications should account for sustained transfer rate requirements and signal integrity over the operating length.

2.2 Camera

Camera systems, including professional digital cameras, industrial inspection cameras and streaming cameras, utilize high speed USB cables for image data transfer and, in selected configurations, for power supply and control signaling. USB 3.2 cables provide sufficient bandwidth for high-resolution image transfer and live view applications. USB4 cables serve high-bandwidth camera applications requiring simultaneous video stream transmission and device control. Cable reliability is particularly important in camera applications where data transfer interruptions can result in lost capture content.

2.3 Display Equipment

Display equipment connectivity, including external monitors, docking stations and video adapters, increasingly relies on high speed USB cables for video signal transmission. USB-C cables supporting DisplayPort Alternate Mode can carry display signals alongside USB data and power. USB4 cables with DisplayPort tunneling enable high-resolution display output, with selected configurations supporting dual 4K display setups. The cable's data rate capability directly affects the maximum supported display resolution and refresh rate. For multi-display docking station applications, USB4 cables at 40Gbps provide the bandwidth required for concurrent display, data and power delivery.

2.4 Industrial Equipment

Industrial equipment applications use high speed USB cables for machine vision systems, industrial data acquisition, firmware programming and equipment diagnostics. Industrial environments often require cables with enhanced shielding for electromagnetic interference (EMI) protection, reinforced connectors for vibration resistance, and jacket materials rated for extended temperature ranges. USB 3.2 cables serve general industrial data transfer applications, while USB4 cables address high-bandwidth industrial imaging and real-time data streaming requirements. Selected industrial-grade high speed USB cables feature IP-rated sealed connectors and overmolded strain reliefs for harsh-environment deployment.

3. Key Selection Factors

Selecting the appropriate high speed USB cable requires evaluation of several interdependent technical parameters. The factors below should be assessed in relation to the intended application and device specifications.

3.1 Data Speed

Data transfer speed is the primary specification for high speed USB cable selection. The cable's rated data rate must match or exceed the requirements of the connected devices. USB 3.2 Gen 1 at 5Gbps is suitable for general high speed peripherals; USB 3.2 Gen 2 at 10Gbps addresses higher-bandwidth storage and video applications; USB 3.2 Gen 2x2 at 20Gbps serves high-throughput data scenarios; USB4 at 40Gbps to 80Gbps supports demanding display and data applications. Selecting a cable rated below the device's capability will limit transfer speeds to the cable's maximum supported rate.

Data Rate Reference:

• USB 3.2 Gen 1: 5Gbps
• USB 3.2 Gen 2: 10Gbps
• USB 3.2 Gen 2x2: 20Gbps
• USB4 Version 1.0: up to 40Gbps
• USB4 Version 2.0: up to 80Gbps

3.2 Cable Length

Cable length directly affects signal integrity at high data rates. The USB 3.x specification supports a maximum passive cable length of approximately 1 meter for Gen 2 (10Gbps) and shorter lengths for Gen 2x2 (20Gbps) configurations. USB4 cable length recommendations are similarly constrained due to the high-frequency signal requirements. For applications requiring longer cable runs, active cables with embedded signal repeater electronics extend the usable length while maintaining rated data rates.

Length Guidance:

• 0.25m to 1m: Standard passive cable range for USB 3.2 Gen 2 and USB4 applications
• 1m to 2m: Suitable for USB 3.2 Gen 1; active cables recommended for USB4 at this length range
• 2m and above: Active cable solutions recommended for maintaining rated data speeds

Active cables incorporate signal conditioning electronics at one or both ends to compensate for signal attenuation over extended lengths. Cable construction, conductor gauge and shielding configuration should be evaluated according to the target length and data rate.

3.3 Application Environment

The operating environment determines the required level of mechanical and environmental protection. Indoor consumer and office applications typically use standard-jacketed high speed USB cables. Industrial environments may require oil-resistant, UV-resistant or flame-retardant jacket compounds, IP-rated sealed connectors and enhanced EMI shielding. Outdoor or field deployment applications may necessitate temperature-rated materials, additional mechanical protection and UV-resistant jacket formulations.

Environment Categories:

• Indoor Consumer / Office: Standard PVC or TPE jacketed cables
• Industrial: Shielded cables with chemical-resistant jackets and reinforced connectors
• Outdoor / Field: Temperature-rated cables with UV-resistant and weather-resistant jacket materials

4. Custom High Speed USB Cable Options

Beyond standard product lines, OEM/ODM custom high speed USB cable solutions are available to match exact product specifications and application requirements. Flexible manufacturing supports custom orders for projects of varying scales.

4.1 Cable Structure

Internal cable structure can be customized to meet specific electrical and mechanical performance requirements for high speed data transmission applications.

• Conductor Gauge: AWG selection optimized for signal integrity and current-carrying capacity at the target data rate and length
• Shielding Configuration: Foil, braid or foil-plus-braid shielding designs for EMI protection performance matched to the operating environment
• Twisted Pair Geometry: Impedance-controlled pair geometry for high-speed signal integrity at USB 3.x and USB4 data rates
• Active Cable Solutions: Embedded signal repeater electronics for extended-length high speed applications, with chip selection and implementation tailored to the target data rate
• Multi-Function Integration: Additional conductor pairs for power, control or audio signals alongside high speed USB data lines, where applicable

4.2 Connector

Connector configuration can be customized to meet specific device interface and mechanical requirements.

• Connector Types: USB-C, USB-A, USB-B and hybrid combinations configured for both connection endpoints
• Angled Connectors: Right-angle, left-angle and up/down angled connectors for space-constrained installations
• Contact Plating: Gold-flash, gold-plated and tin-plated contact options, with plating thickness selectable based on insertion cycle and corrosion resistance requirements
• Overmold Design: Custom overmold shapes and colors tailored to branding and mechanical specification requirements
• E-Marker Integration: E-marker chip integration for USB-C cables supporting high-power USB PD applications

4.3 Length

Cable length is configurable to application requirements, with construction adjusted to maintain signal integrity at the target data rate and operating distance.

• Precision Cutting: Custom lengths manufactured to specified tolerances for application-specific installations
• Conductor Adjustment: Conductor gauge and shielding configuration selected to match length and data rate requirements
• Active Cable Options: Active cable solutions for extended lengths requiring signal conditioning at high speed data rates
• Quality Verification: Continuity testing and signal attenuation measurement at the target length to verify rated performance

For high speed USB cable inquiries — including data rate targets, cable length, connector configuration and application environment — suitable cable constructions can be recommended and samples provided along with a competitive quotation.
