GaN Charger Solutions for High Power Charging Applications

1. GaN Charger Product Features

GaN (Gallium Nitride) is a wide-bandgap semiconductor material that offers superior electrical characteristics compared to traditional silicon (Si) in power switching applications. In charger design, GaN transistors enable higher switching frequencies — typically 1 to 3 MHz compared to below 100 kHz for silicon MOSFETs — which reduces the size requirements for transformers, capacitors and inductors. This results in chargers that deliver equivalent or higher output power in substantially smaller housings.

The commercial value of GaN technology in charger products is reflected in three primary characteristics:

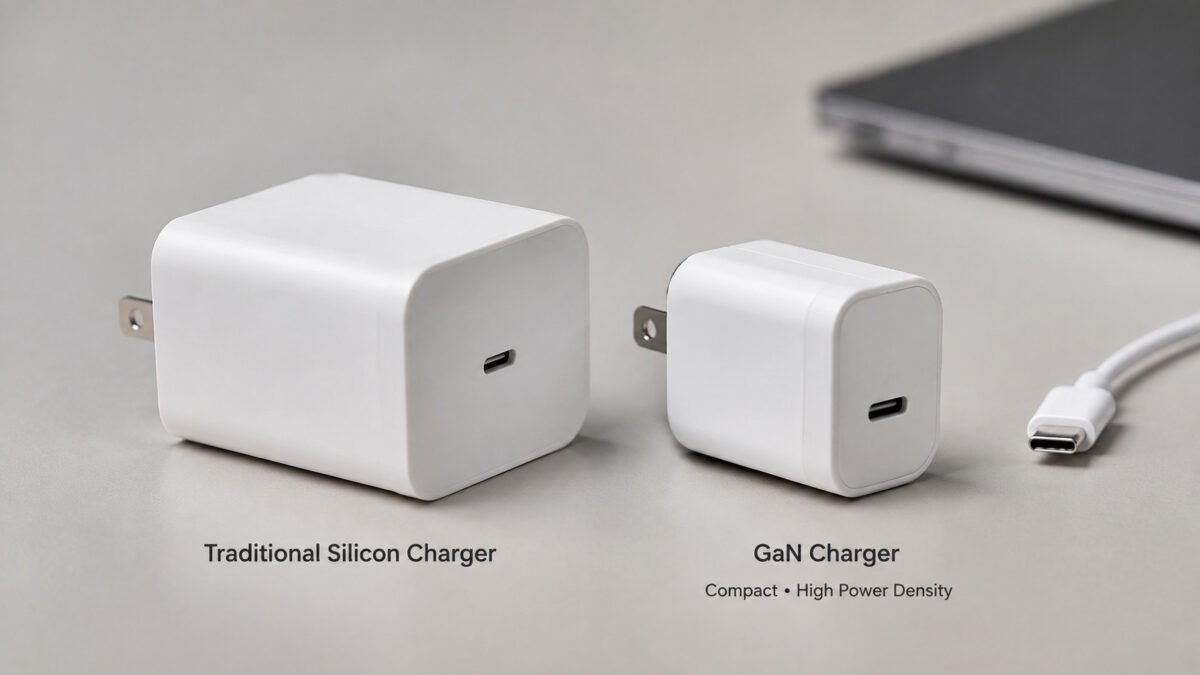

1.1 Compact Size

GaN chargers achieve significant size reduction compared to silicon-based chargers at equivalent power levels. The higher switching frequency of GaN transistors allows smaller magnetic components and reduced heat sink requirements, resulting in housing volumes approximately 40% to 50% smaller than silicon-based counterparts in selected models. For example, a 65W GaN charger typically measures around 50 x 50 x 30 mm, compared to approximately 70 x 70 x 35 mm for an equivalent silicon-based charger. Actual dimensions vary by model, manufacturer design approach and thermal management strategy.

Size Advantages:

• Housing volume reduced by approximately 40%–50% compared to silicon-based chargers at equivalent power (selected models)
• Typical 65W GaN charger weight of 90–120 g, compared to 180–220 g for silicon-based equivalents
• Reduced packaging and shipping volume for bulk wholesale logistics

1.2 High Power Density

Power density, measured as output wattage per unit of charger volume (W/cm³), is a primary differentiator of GaN charger technology. GaN chargers achieve power conversion efficiency of 90% to 95%, compared to 80% to 85% for typical silicon-based chargers. This higher efficiency reduces heat generation, enabling higher power output within smaller housings. Selected 100W GaN chargers achieve palm-sized form factors that were not practical with silicon-based designs.

Power Density Characteristics:

• Power conversion efficiency of 90%–95% in selected models, compared to 80%–85% for silicon-based equivalents
• Higher wattage-to-volume ratio enabling 65W to 140W output in compact housings
• Reduced thermal output allowing sustained high-power delivery without excessive heat buildup
• Operating temperatures typically 40–55°C in selected models, compared to 60–80°C for silicon-based chargers

1.3 Portable Design

The combination of compact size and high power density makes GaN chargers particularly suitable for portable and travel applications. Higher-wattage GaN chargers — including 65W, 100W and 140W models — can be designed in form factors that fit comfortably in pockets, bags and travel cases. This portability enables a single high-power GaN charger to replace multiple device-specific adapters during travel, reducing the total charging accessories carried.

Portability Features:

• High-power output (65W–140W) in pocket-sized form factors suitable for travel
• Selected models with foldable plug pins for compact storage
• Single charger serving multiple device types via USB-C PD, reducing travel accessory count
• Weight reduction of approximately 40%–50% compared to silicon-based equivalents at the same power level

2. GaN Charger Applications

GaN charger technology serves three primary market segments, each with distinct requirements for power output, form factor and product positioning. The following sections outline the specific application categories and their corresponding product requirements.

2.1 Consumer Electronics

In the consumer electronics segment, GaN chargers address the fast-charging and multi-device charging needs of modern digital device users. The compact form factor and high power output make GaN chargers suitable for retail bundling, accessory packaging and consumer market distribution.

Smartphone

• 20W to 30W GaN chargers for USB PD fast charging of modern smartphones
• Compact single-port designs suitable for retail packaging and consumer accessory bundles
• Higher conversion efficiency reducing heat generation during fast-charge cycles

Laptop

• 65W to 100W GaN chargers for ultrabook and standard laptop charging via USB-C PD
• Compact form factors replacing traditional bulky laptop power adapters
• Selected 100W GaN chargers in palm-sized designs suitable for portable laptop use
• 140W GaN chargers under USB PD 3.1 EPR for high-performance gaming laptops and mobile workstations

2.2 Travel Market

The travel market segment prioritizes portability, multi-region compatibility and high power output in minimal physical space. GaN chargers are particularly well-suited for this segment because their compact size and high power density enable travel-friendly designs that cover multiple device charging needs.

Portable Charger

• Travel GaN chargers with foldable plug pins and interchangeable plug heads for multi-region use (US, EU, UK, AU)
• Universal input voltage (100–240V) for international travel compatibility
• Dual-port and multi-port GaN travel chargers for simultaneous smartphone and laptop charging
• 20W to 65W travel configurations in pocket-sized form factors with reduced weight
• Selected models with retractable pins or snap-on plug adapters for region-specific use

2.3 Premium Brands

Premium brand partners and high-end accessory manufacturers utilize GaN charger technology to differentiate product offerings through advanced technology positioning, superior design quality and enhanced user experience. This segment prioritizes product aesthetics, build quality and brand value alongside charging performance.

High-end Accessories

• Premium GaN chargers with custom housing finishes including soft-touch, metallic and textured surfaces
• High-wattage multi-port GaN charging stations for premium workstation and executive desk setups
• Co-branded GaN charger solutions for luxury tech accessory and corporate gift channels
• Selected models with premium packaging design, multilingual labeling and destination market certifications
• Custom color matching and brand-specific tooling for exclusive product lines

3. GaN Charger Product Solutions

Three primary product configurations are available in the GaN charger lineup, each designed for specific use scenarios and power delivery requirements. The following sections detail the available configurations, typical power ranges and application suitability.

3.1 Single Port GaN Charger

Single port GaN chargers dedicate the full rated output power to one connected device. This configuration is suitable for dedicated device charging where maximum power delivery to a single device is the priority. Single port GaN chargers are available across the full power range from 20W to 140W.

Product Specifications:

• Power output: 20W, 30W, 65W, 100W and 140W configurations available
• Single USB-C port with USB PD 3.0 SPR support (up to 100W) and USB PD 3.1 EPR support (up to 140W on selected models)
• Form factors: wall-plug and compact travel designs with foldable pins
• Housing volume: approximately 40%–50% smaller than equivalent silicon-based single-port chargers

Suitable Applications:

• Smartphone fast charging (20W–30W)
• Tablet and portable device charging (30W–65W)
• Laptop and ultrabook charging (65W–100W)
• High-performance laptop and workstation charging (100W–140W)

Single port GaN chargers are the entry configuration in the GaN product line. Their compact form factor and cost-efficient design make them suitable for high-volume consumer market supply, retail bundling and smartphone accessory packaging. Selected 65W and 100W models provide laptop charging capability in housings comparable to older-generation 20W silicon-based chargers.

3.2 Multi-Port GaN Charger

Multi-port GaN chargers combine two or more USB output ports in a single compact housing, distributing power intelligently across connected devices. GaN technology enables higher total output power within a manageable form factor, making multi-port configurations practical for shared charging scenarios.

Product Specifications:

• Port configurations: dual-port (2 ports) and multi-port (3–6 ports) options available
• Port types: USB-C with PD support and USB-A, in mixed configurations
• Total output power: 45W to 140W combined, with intelligent power distribution across ports
• Selected models supporting per-port USB PD output up to 100W while additional ports provide 20W–30W simultaneously
• Intelligent power controllers that allocate current based on each connected device's negotiated power level

Suitable Applications:

• Simultaneous charging of laptop and mobile devices from a single charger
• Office desk and workstation charging stations
• Shared charging for meeting rooms, reception desks and public spaces
• Family and team charging setups reducing outlet clutter

Multi-port GaN chargers are positioned as premium solutions for multi-device environments. The total combined output is limited by the charger's rated power — for example, a 100W dual-port GaN charger may deliver 65W to one port and 30W to another, or 100W to one port when the other is not in use. Actual power distribution depends on the specific model and connected device requirements.

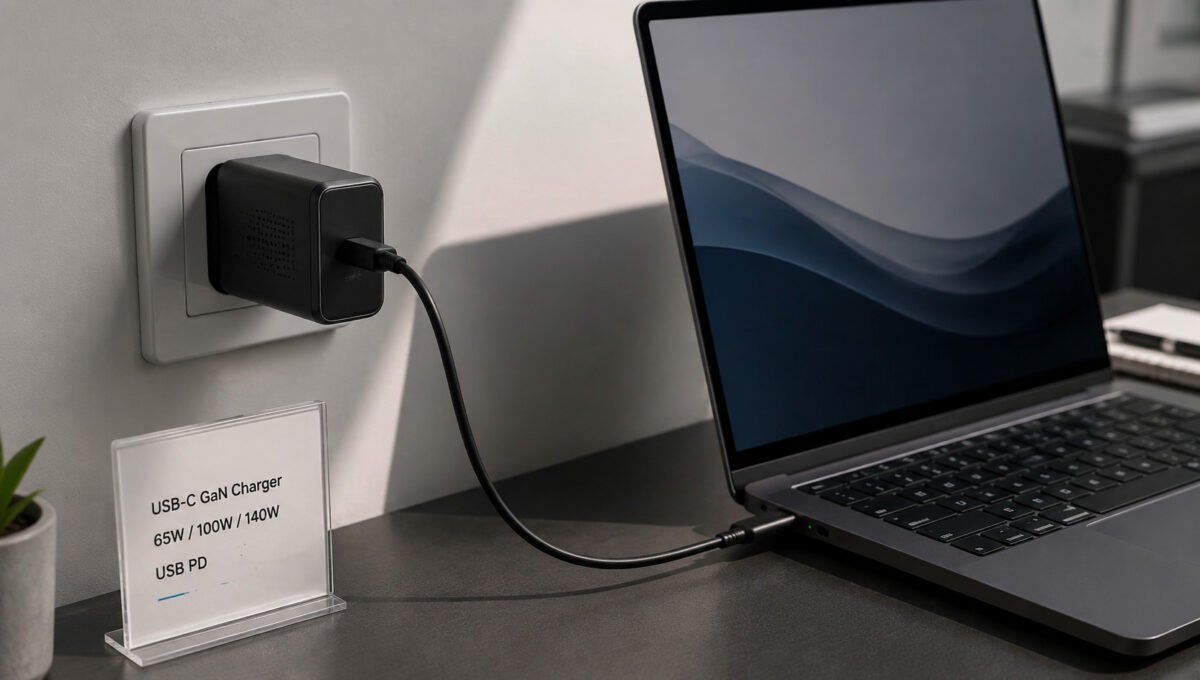

3.3 Laptop GaN Charger

Laptop GaN chargers are high-power configurations specifically designed for laptop and ultrabook charging via USB-C Power Delivery. These chargers deliver 65W to 140W output, covering the power input requirements of a wide range of modern laptops that support USB-C PD charging. GaN technology enables these high-wattage chargers to achieve form factors significantly smaller than traditional proprietary laptop power adapters.

Product Specifications:

• Power output: 65W (20V/3.25A), 100W (20V/5A) under USB PD 3.0 SPR, and 140W (28V/5A) under USB PD 3.1 EPR
• USB-C port with USB PD 3.0 and 3.1 protocol support
• Form factor: compact wall-plug or desktop designs, significantly smaller than traditional laptop power adapters
• Backward compatibility with lower-power devices — a 100W GaN charger safely charges a 20W smartphone via USB PD handshake negotiation
• Selected models with detachable AC cables and interchangeable plug heads

Suitable Applications:

• Ultrabook and thin-and-light laptop charging (65W)
• Standard laptop and mobile workstation charging (100W)
• High-performance gaming laptop and workstation charging (140W under USB PD 3.1 EPR)
• Enterprise fleet laptop charger supply replacing proprietary adapters for USB-C PD compatible devices
• Retail laptop accessory channel and replacement adapter market

Laptop GaN chargers represent the upper power tier of the GaN charger product line. Compatibility with USB PD 3.0 SPR and 3.1 EPR enables these chargers to serve a wide range of USB-C PD compatible laptops. For laptops that do not support USB-C PD charging, proprietary adapters remain necessary — GaN laptop chargers are suitable for devices with USB-C PD power input support.

4. OEM Customization Capabilities

Full OEM/ODM development and manufacturing services are available for brand partners seeking custom GaN charger solutions. The development process supports customization across appearance design, port configuration, power output and branding. The following sections outline the primary customization directions available for OEM projects.

4.1 Appearance Design

Housing form factor, material, color, finish and overall industrial design are tailored to brand identity and target market positioning. Available housing designs span wall-plug, desktop and travel form factors, with custom dimensions and surface treatments available for qualified projects.

Available Options:

• Wall-plug, desktop and travel form factors with custom dimensions
• Housing materials: PC (polycarbonate), ABS and flame-retardant compounds (V-0 rated options)
• Custom color matching to specified Pantone references
• Surface finishes: matte, glossy, textured, soft-touch and metallic options
• Foldable pin designs and interchangeable plug heads for multi-region use
• Custom industrial design and tooling for exclusive product lines

Appearance design also incorporates thermal management considerations specific to GaN technology. While GaN chargers generate less heat than silicon-based equivalents, higher-wattage models (100W–140W) may still require ventilation patterns, internal heat sinks or thermal pads. Custom housing designs are validated through thermal testing to verify compliance with safety standards.

4.2 Port Configuration

Port count, type and arrangement are customizable to match the intended use scenario. Available options include single USB-C, dual-port and multi-port configurations with mixed USB-C and USB-A combinations. Port placement on the housing can be adjusted for specific product designs and user experience requirements.

Available Options:

• Single port (USB-C) for dedicated device charging
• Dual port (USB-C + USB-C or USB-C + USB-A) for simultaneous two-device charging
• Multi-port (3–6 ports) configurations for shared charging station scenarios
• Intelligent power distribution with per-port USB PD support on selected models
• Custom port placement and orientation for specific housing designs
• Power distribution strategies: fixed allocation or dynamic intelligent distribution based on connected device demand

Power distribution in multi-port GaN chargers is managed by intelligent controllers that allocate current based on each port's connected device. The total combined output is limited by the charger's rated power — when multiple high-power devices are connected simultaneously, the charger prioritizes power allocation based on the configured distribution strategy. Custom power distribution logic can be developed for qualified projects with specific multi-device charging requirements.

4.3 Power Configuration

Output wattage is configurable from 20W to 140W, with USB PD 3.0 and 3.1 protocol support tailored to target device compatibility. GaN semiconductor specifications, circuit topology and thermal design are selected based on the configured power output level.

Available Options:

• 20W to 30W GaN configurations for smartphone and tablet fast charging
• 65W GaN configuration for ultrabook and thin-and-light laptop charging
• 100W GaN configuration under USB PD 3.0 SPR (20V/5A) for standard laptop charging
• 140W GaN configuration under USB PD 3.1 EPR (28V/5A) for high-performance laptop and workstation charging
• Custom PDO configurations for specialized device requirements
• Additional fast-charging protocol support: Qualcomm Quick Charge, Samsung AFC, Huawei SCP

Power configuration also includes the selection of supported voltage PDOs. For example, a custom 65W GaN charger can be configured to support 5V, 9V, 15V and 20V PDOs, or limited to specific voltage levels depending on target device compatibility requirements. Circuit topology options include active clamp flyback, LLC resonant and other architectures, with selection based on power level, efficiency targets and cost parameters.

4.4 Branding

Brand identity is applied to GaN charger housings and packaging through multiple methods. The branding method is selected based on housing material, durability requirements and brand visual guidelines.

Available Branding Methods:

• Silk-screen printing for flat housing surfaces with single or multi-color logos
• Laser engraving for durable, permanent branding on metal or plastic housings
• Embossed or debossed molding for integrated brand identity in the housing tool
• Custom logo size, position and color per brand specifications
• Co-branded designs for partnership and promotional channels
• Custom retail packaging with brand logo, product information and certification marks

Branding is applied during the final production stage, after housing molding and assembly. Sample units with applied branding are provided for approval before mass production begins. Brand artwork files are accepted in AI, EPS or PDF vector formats. For premium brand projects, selected models support full custom housing tooling with brand-exclusive industrial design, color matching and packaging development.

For procurement partners seeking GaN charger solutions, the technical sales and engineering team can help specify the right power level, port configuration, appearance design and branding options for specific project requirements. Contact the team today with target device specifications, power requirements, estimated quantity and destination markets to receive product recommendations, sample options and a competitive quotation.
