Standard Micro USB Cable
USB-A to Micro-B 5-pin cable for charging and USB 2.0 data synchronization. Available in multiple lengths, materials and conductor configurations.
Explore Micro USB cables, adapters and extension solutions for charging, USB 2.0 data transfer, legacy OTG connectivity and embedded-device applications. Compare connector configuration, charging current, data function, cable construction and installation requirements to select the right product.
The category includes more than standard charging cables. Choose from straight and right-angle cables, OTG adapters, USB-A / USB-C converter cables, panel-mount extensions and special-purpose Micro USB assemblies.
USB-A to Micro-B 5-pin cable for charging and USB 2.0 data synchronization. Available in multiple lengths, materials and conductor configurations.
90-degree Micro USB cable options for gaming, tight spaces and products where a straight connector creates mechanical interference.
Legacy host and adapter configurations including Micro USB male to USB-A female and Micro USB to USB-C converter solutions for compatible devices.
Converter cable family including USB-A to Micro USB female, USB-C male to Micro USB female and 90-degree USB-C to Micro USB female options.
Micro USB female extension cable with screw-mount options for equipment panels, embedded systems and fixed installations.
Special-purpose configurations such as 3.5mm to Micro USB 5-pin assemblies for product-specific power, audio or signal applications.
The Micro USB connector alone does not define every function of the cable. Confirm whether the project requires charging, USB 2.0 data communication or legacy OTG / host operation.
Power-focused Micro USB cables are selected according to current requirement, conductor gauge, cable resistance and cable length.
Data-capable Micro USB cables include the required conductors for device synchronization, communication and firmware programming.
OTG adapter configurations can allow compatible legacy Micro USB devices to connect to selected USB peripherals.
Micro USB charging performance depends on the charger, connected device and cable construction. Current rating should be considered together with conductor gauge, cable resistance and cable length.
For lower-power legacy and embedded devices.
A practical option for many portable products.
Common for tablets, power banks and higher-load Micro USB equipment.
Available where the charger, device and cable configuration support it.
Thicker 24AWG power conductors can be used in higher-current Micro USB cables to reduce resistance and voltage drop.
Heavy-duty configurations can use larger 22AWG power conductors where lower resistance is required.
Longer cables increase electrical resistance. Conductor size should therefore be selected together with required cable length.
Standard Micro USB 2.0 data cables can support Hi-Speed USB communication for synchronization, device communication and firmware upload.
A Micro USB cable used only for charging should not automatically be assumed to include full data wiring.
For standard Micro USB data communication with compatible devices.
28AWG data conductor configurations are available in the existing product specification.
Optional aluminum foil and braided shielding can be used for applications requiring improved signal integrity.
OTG adapters support host-style connectivity only when the connected Micro USB device provides compatible OTG functionality.
Use these parameters when selecting a standard or custom Micro USB cable configuration.
Standard 5-pin Micro USB cable configuration.
For compatible data-sync and communication applications.
Select according to device, charger and cable construction.
Different power and data conductor configurations are available.
Optional shielding for data and equipment applications.
Standard and custom lengths available according to project requirements.
Material selection depends on flexibility, appearance and durability requirements.
Housing construction can be selected according to the product design.
Power, data and connector construction are separated so different Micro USB products can be compared according to their actual function.
| PRODUCT | POWER | DATA & FUNCTION | CONNECTOR / DESIGN | APPLICATION | |||
|---|---|---|---|---|---|---|---|
| Product Type | Charging | Key Power Factor | USB Data | OTG / Special Function | Connector | Mechanical Design | Typical Use |
| Standard USB-A to Micro-B Cable | 1A–2.4A options | Gauge / length | Up to 480Mbps | Standard USB device function | USB-A Male → Micro-B Male | Straight | Charging / Data Sync |
| Right-Angle Micro USB Cable | By configuration | Gauge / cable length | USB 2.0 option | Application dependent | Micro-B | 90° / Braided | Gaming / Tight Spaces |
| Micro USB OTG Adapter | Application dependent | Host/device design | USB 2.0 | OTG for compatible devices | Micro USB → USB-A Female | Adapter Cable | Legacy Peripheral Connection |
| USB-A to Micro USB Female Adapter | By adapter configuration | Connected device | Charging / data configuration | Converter function | USB-A → Micro USB Female | Adapter | Legacy Connector Conversion |
| USB-C to Micro USB Female Adapter | By adapter configuration | Connected equipment | By cable design | Connector conversion | USB-C → Micro USB Female | Straight / 90° | USB-C Source to Legacy Device |
| Panel-Mount Micro USB Extension | By cable design | Length / conductor | USB 2.0 option | Extension | Micro USB Female | Screw / Panel Mount | Industrial / Embedded Equipment |
| 3.5mm to Micro USB 5P Cable | Project specific | Pinout dependent | Not standard USB data | Product-specific signal / power | 3.5mm ↔ Micro USB 5P | Special Assembly | Special Equipment / Audio / Power |
Charging current, USB data capability and special functions depend on the selected cable or adapter design. Special-purpose products such as 3.5mm-to-Micro-USB cables must use the pinout required by the target equipment.
Micro USB remains useful for existing equipment, replacement accessories and products that continue to use the Micro-B interface.

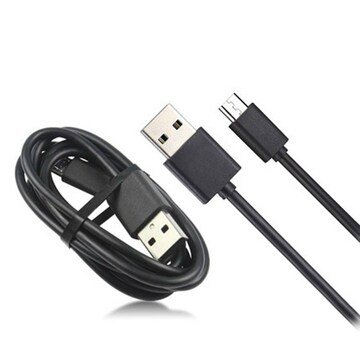

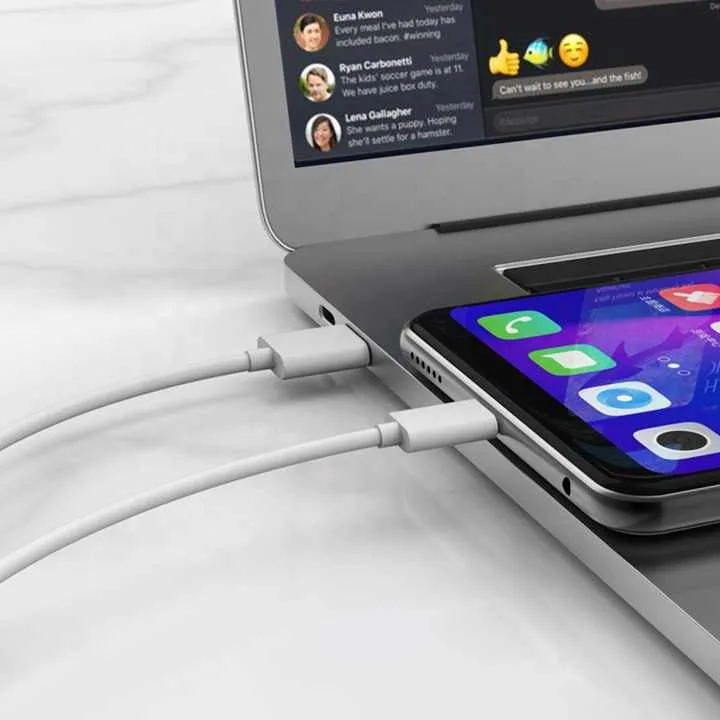

Charging and data cables for older smartphones, tablets and portable electronics using Micro USB.
Focus: charging + USB 2.0 dataMicro USB charging cables for power banks and portable charging products that retain Micro USB input ports.
Focus: current + low voltage dropCharging cables and special assemblies for speakers, headphones and compatible audio accessories.
Focus: durability + connector fitPower, data and firmware-programming connections for compatible controllers, development boards and embedded products.

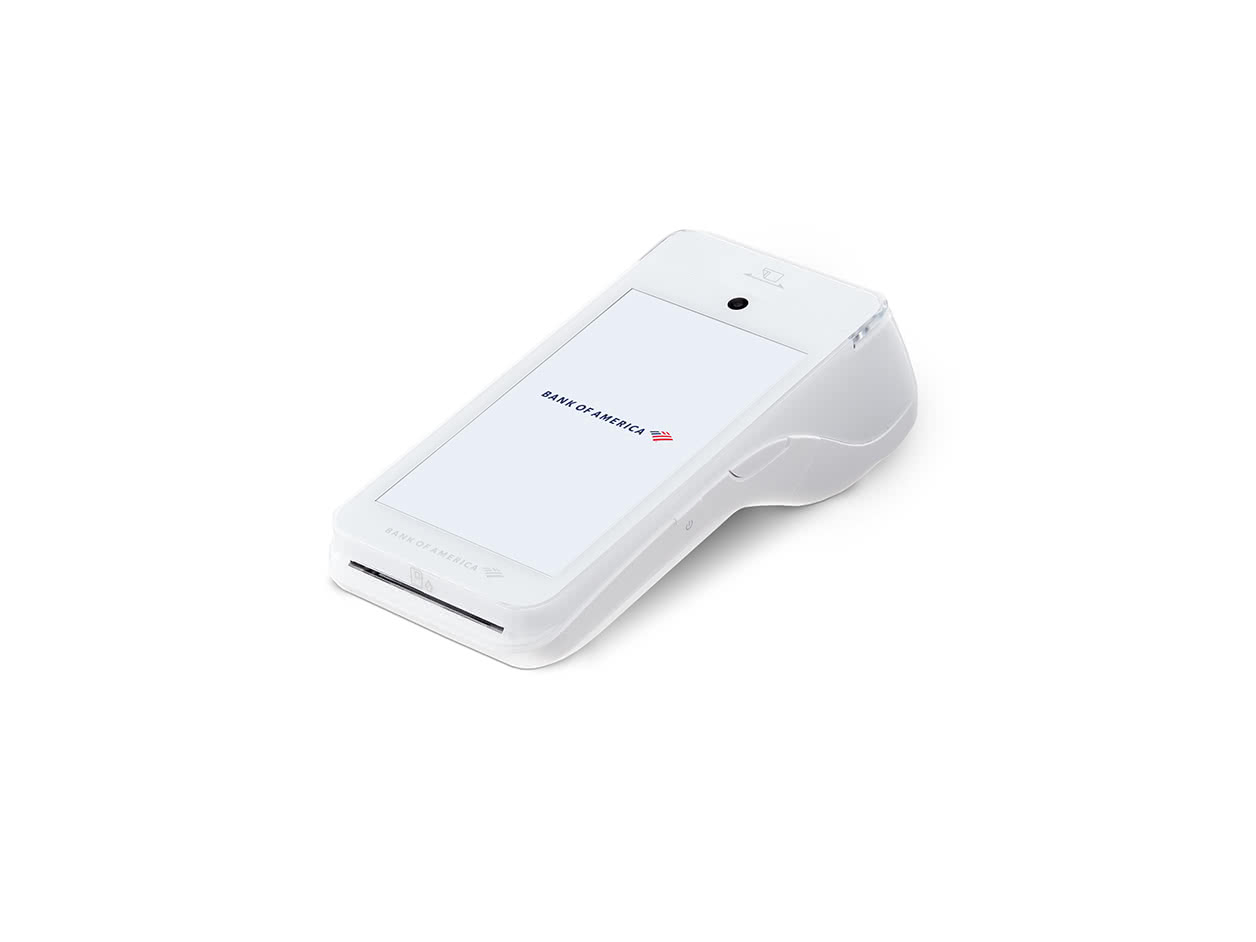

Focus: stable data + powerMicro USB cable assemblies for compatible POS equipment, readers, scanners and installed hardware.
Focus: strain relief + reliabilityPanel-mount, extension and special-purpose Micro USB assemblies for equipment integration and legacy system maintenance.
Focus: mechanical fit + shieldingDefine these six parameters before selecting a Micro USB cable or adapter for your project.
Choose standard Micro-B, female adapter, OTG, panel-mount or special configuration.
Confirm whether the device requires 1A, 1.5A, 2A or another supported current.
Determine whether USB 2.0 data is required or the product is primarily for charging.
Confirm legacy OTG support or any project-specific pinout requirements.
Select cable length and power conductor gauge according to voltage-drop requirements.
Define straight or 90° connector, jacket, shielding, housing and panel-mount requirements.
Select cable materials and construction according to flexibility, durability, signal requirements and installation environment.
Practical jacket material for general consumer electronics and standard cable applications.
Soft and flexible cable jacket for portable devices and regular handling.

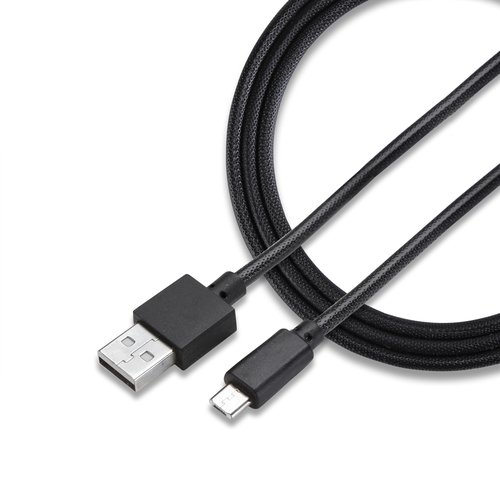

Braided nylon and flat cable options for added abrasion resistance, organization and product appearance.
Kevlar reinforcement, optional shielding and larger power conductors can be selected for demanding equipment applications.
Common questions about Micro USB charging and data functions, USB-C adapters, right-angle connectors, wire construction and equipment installation.
No. Some Micro USB cable designs are intended primarily for charging, while data-capable versions include the required conductors for USB communication.
If your application involves synchronization, firmware updates or device communication, confirm the data function of the selected cable.
Yes. Our current product range includes USB-C male to Micro USB female adapter configurations, including right-angle designs.
The supported charging or data function depends on the adapter design and the connected equipment. Please confirm the intended connection direction and device compatibility before selection.
Yes. The range includes 90-degree Micro USB cable designs, including braided options.
A right-angle connector can help reduce interference with nearby components and improve cable routing in compact equipment, gaming devices or limited installation spaces.
Check the required connector orientation because the same right-angle design may not suit every device.
Our existing Micro USB specifications include 28AWG data conductors, 24AWG power conductor configurations and heavier-duty 22AWG power options.
The appropriate construction depends on cable length, charging current, voltage drop and the intended application. Different products may use different conductor combinations.
Yes. Our current category includes Micro USB female extension cable assemblies with screw-mount configurations.
These designs can position a Micro USB connection on an equipment enclosure or panel for easier access.
Confirm the mounting dimensions, screw spacing, connector clearance and electrical function before installation.
This is a special-purpose cable assembly rather than a standard USB-A to Micro-B charging or data cable.
Its function depends on the electrical connections and pinout defined for the target equipment.
It should not be assumed compatible with ordinary Micro USB devices. Please provide the required pinout and application details before production.
Tell us your connector configuration, charging current, USB 2.0 data requirement, OTG or special wiring requirement, cable length, conductor gauge and application. We can help identify a suitable Micro USB cable or adapter configuration.
